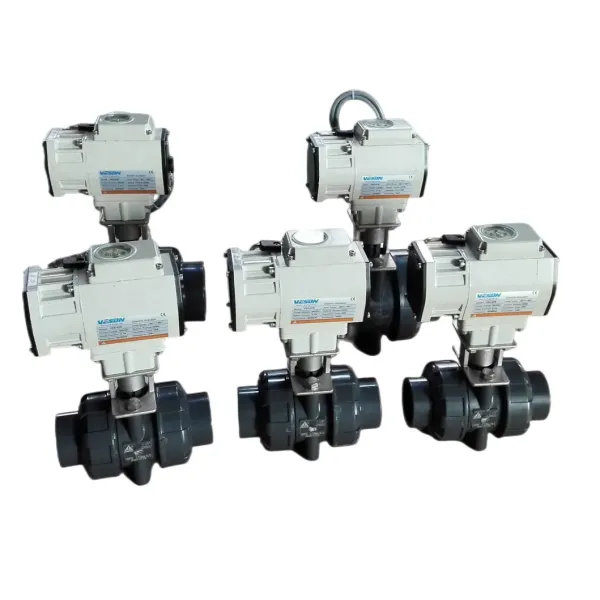

Electric Actuated Ball Valve with 3-PC Screwed End, PN1.0-32.0MPa Pressure Rating, and ISO5211 Standard Compliance

Model NO. : VS-063DA

Connection Form : Thread

Driving Mode : Electric

Nominal Pressure : PN1.0-32.0MPa

Channel : Straight Through Type

Structure : Floating Ball Valve

Type : Floating Ball Valve

Function : Blow-Down Valve, Relief Valve, Atmospheric Valve

Temperature : Normal Temperature

Standard : ISO5211

Transport Package : Plywood Case Package or Carton Case Package

Specification : VSE-20

Trademark : VESON or Cusomer"s

Origin : China

HS Code : 8481804090

Production Capacity : 50000PC / Y

MOQ : 1

Contact Now

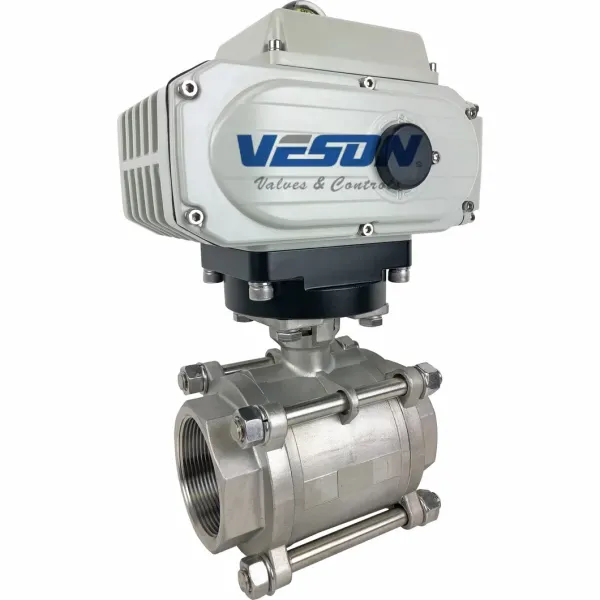

VS series electric actuated ball valve (3-PC SCREWED END):
Valve: 3-PC Screwed End Ball Valve (two way)
Valve Size: 1/4"~4" ( DN6~DN100)
Body/ Ball Material: CF8/CF8M/CF3M
Seat Material: PTFE, RTFE, Graphite & Others
Rating: 1000WOG, 2000WOG
Connection: Female Thread, SW (Socket Welded), Butt-weld
